| RF-330 | ROTARY | SEMI-ROTARY |
| Gear pitch | 3.175 mm | |
| Max.web width | 333 mm | |
| Min. web width | 160 mm | |
| Max. mechanical speed | 180 m/min | 60 m/min |
| Max. format length | 609.6 mm (24") | 320mm(12.6"） |
| Min. format length | 254 mm (10") | 50.8 mm (2") |
| Substrate thickness | 0.05-0.25mm | |
| Maximum number of flexo stations | 12 | |
| Auto Registration accuracy | ±0.1 mm (print direction) | |
| ±0.1 mm (across the web, option) | ||
| Max. unwind and rewind diameter | 1,000 mm | |
| Air mandrel | 76 mm (3"） | |
| Suitable inks | UV ink,water based inks optional for last flexo station | |
| Curing system | Led UV & Mercury lamp, hot air dryer optional for last station | |
Printing speed depends on type and thickness of substrate, repeat length (semi-rotary mode), ink layer area & thickness, etc.

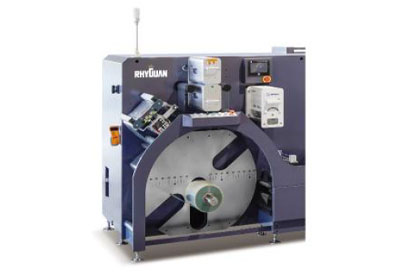

Cantilevered lifting air shaft with Max.diameter 1000 mm capabilty
76 mm air expanding mandrel
Electronic web guide with ultrasonic edge guide sensor
Servo-driven tension roller
Servo-driven horizontal swing roller for semi-rotary
Pneumatic driven dancing roller
Web cleanning and corona device optional
Suitable for rotary an semi-rotaty mode

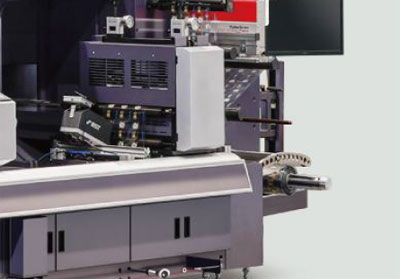

Standard magnetic Z204 cylinder
Anvil and counter pressure Z106 cylinder
Very easy to reuse die-plates designed for full rotary small cylinders.
Adjustable anvil & pressure dials optional
Pre-registration
Easy to use system

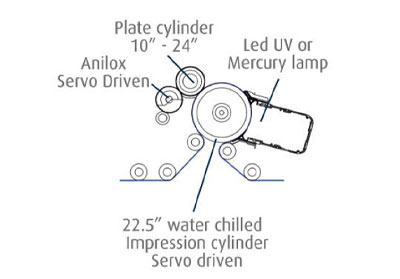

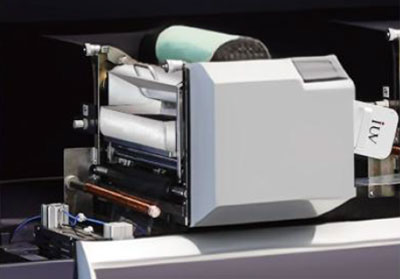

22.5" water chilled impression cylinder
4.3"independent touch screen
Suitable for UV inks
15" moveable touch screen
Water based ink suitable in last sation optional
Led UV or Mercury UV
Exchangeable deivce optional
Hot air dryer optional for last station

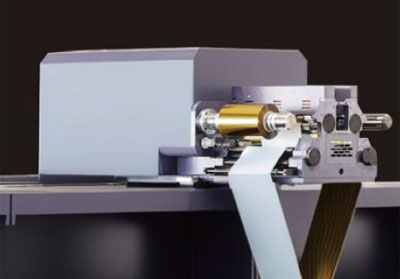

Suitable for rotary and semi-rotary cold foil
Can be used for Super varnish
Equiped with 4 independent servo motors
Suitable for 6-40 um foils
Movable on rail
Cantilevered lifting air shaft with Max.diameter 1000 mm capabilty
76 mm air expanding mandrel
Waste rewinder optional
Upper rewinder with Max.760 mm capabilty optional

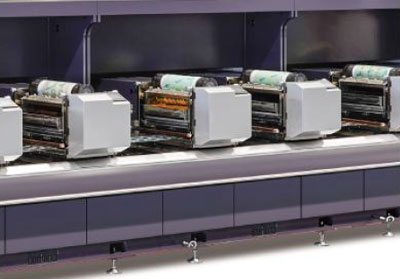

Build upon a strong and reliable cast iron base and top frame-plat.
Web turn bar
Delam & relam
Converyor
Slitting
...
