Servo-driven, full rotary die cutting machine for blank labels, complete with a slitter and turret rewinder. High accuracy converting in speeds of up to 120 m/min.
LG-330TT Plain Label Rotary Die Cutting Machine, is servo-driven, features double seat full rotary die cutting machine for blank labels, complete with a slitter and turret rewinder. High accuracy converting and high productivity in speeds of up to 120m/min.
Specifications
LG-330-TT
AVAILABLE WIDTH: 330MM/420MM/520MM
Max Web Width
330mm
Max Die-cutting Speed
120 m/min
Max Die-cutting length
190.5-647.7mm
Max Unwinder dia.
700mm
Max Rewinder dia.
400mm
Min Slitting width
16mm
Accuracy of Adhesive Cutting
±0.15mm
Registration
Mark Sensor
Slitting Blades installed
6 sets
Air Supply
0.4~0.6MPa
Total Motor Power
16.5KW
Dimension
4150×1500×1890mm
Weight
2000KGS

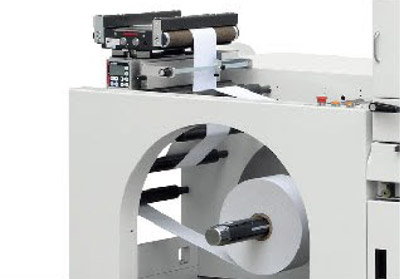

UNWINDER & WEB GUIDING
Servo driven unwind for clock wise and anti-clock wise unwinding. Automatic tension control, end-of-roll detection, webguide, integrated splice table, 76mm unwind mandrel. Factory upgrade to unwind rolls with dia = 1000mm and a reel lift possible.

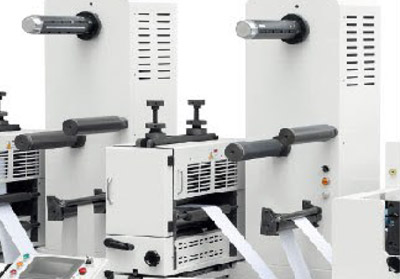

DOUBLE STATION ROTARY DIE CUTTER
Servo-driven, double station full rotary die cutter with solid cylinder exchange. Offers high speed and high accuracy die cutting

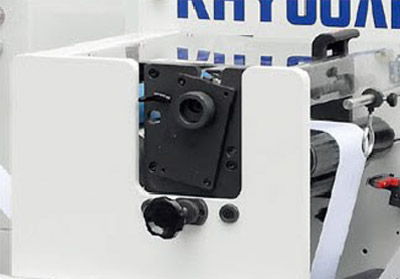

SLITTING OPTIONS
Optional shear slitter or razor blade and standard high-pressure waste suction system.

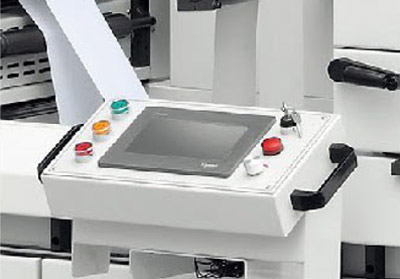

CONTROL PANEL
Intuitive touch screen interface, mounted on sliding rail for easy control of machine and vision system.

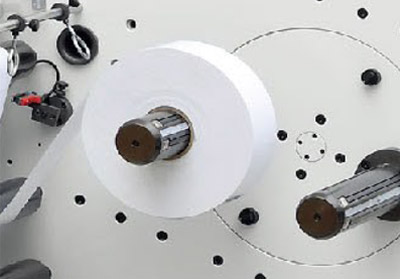

REWINDING OPTIONS
Standard turret rewind and one more single rewind for optimal productivity.
