Reduce Material Waste: Optimize Unwind Tension on Slitter Rewinder | Rhyguan

You have a $5,000 roll of specialty film on the unwind stand. The slitter rewinder is running at 200 meters per minute. Halfway through the job, you notice wrinkles forming at the edges. By the time the run finishes, 8% of the material is scrap—telescoped rolls, wrinkled sections, and edge damage that cannot be salvaged. The culprit? Unwind tension.

Material waste on a slitter rewinder is rarely dramatic. It does not announce itself with a loud bang or a complete machine stop. Instead, it accumulates quietly—a few meters of wrinkles here, some telescoped rolls there, a handful of edge nicks that make the material unusable downstream. Over a year, these seemingly small losses can add up to tens of thousands of dollars in wasted material.

The good news is that most of this waste is preventable. And the solution starts at the very beginning of the process: the unwind tension zone.

This guide explains how unwind tension affects material waste on a slitter rewinder, provides a practical framework for diagnosing tension-related problems, and outlines step-by-step methods to optimize tension settings for different materials.

（https://youtu.be/2XiRumKWB2M?si=hYU5GFGNewJyeahJ）

Why Unwind Tension Is the Starting Point for Waste Reduction

A well-designed slitter rewinder has five main functions: unwinding and transporting the web, slitting the material, transporting the slit strands, rewinding good rolls, and facilitating product changeovers. Of these five functions, four depend on good tension control.

The unwind zone is where tension begins. The torque applied at the unwind core transmits through the roll's radial layers to create tension at the outside of the roll. As the unwind roll diameter decreases during a run, a constant torque produces increasing tension—meaning that without active adjustment, tension rises as the roll gets smaller.

Why does this matter for waste? Tension that is too high or too low at the unwind creates a cascade of problems downstream:

Tension Problem	Immediate Effect	Waste Consequence
Too high	Material stretches, deforms, or breaks	Scrap from tears; unusable stretched sections
Too low	Web slackens, wrinkles, or wanders off-track	Wrinkled material; misaligned cuts; edge damage
Fluctuating	Inconsistent slitting quality	Variable roll quality; rejected rolls

Poor tension control can lead to web breaks, wrinkles, edge wandering, uneven winding, and scrap. And because the draw zone tension at the slitting knives follows the unwind tension, to have constant tension at slitting, you need constant tension at unwinding.

For converters running slitter rewinders as part of their label finishing line, understanding how tension control integrates with the broader converting workflow is essential. See how slitter rewinder systems are designed for precision converting.

Diagnosing Unwind Tension Problems—What to Look For

Before you can optimize tension, you need to know what problems to look for. Here are the most common signs that unwind tension is costing you material:

Wrinkles forming at the edges during unwinding typically indicate excessive tension. The material is being pulled too tightly, causing it to deform and buckle. Reduce tension settings and check guide roller alignment.

Frequent material breaks during processing are often caused by excessive tension that strains the material beyond its limit. Lower tension levels to prevent stretching and breaking.

Telescoped rewind rolls—where layers shift sideways relative to each other—usually point to tension that is too low or inconsistent. The material is not being wound tightly enough to maintain roll integrity.

Uneven cut edges or jagged slitting lines indicate that the web is fluttering or shifting during cutting. Consistent tension prevents the web from moving sideways.

Inconsistent roll density—some rolls wound too tight, others too loose—suggests that tension is not being adjusted as the roll diameter changes.

If you notice any of these issues, the unwind tension zone is the first place to investigate.

How to Optimize Unwind Tension—A Step-by-Step Approach

Optimizing unwind tension is not a one-time setting. It requires a systematic approach that accounts for material type, roll diameter, and operating speed.

Understand Your Material's Tension Requirements

Different materials have different tension tolerances. Thin films like BOPP and PET are highly sensitive to tension fluctuations—their thin nature makes them prone to wrinkles and edge defects. Paper substrates, while more forgiving, still require precise tension to avoid dust generation and fiber breakage.

Start with manufacturer recommendations for your specific material. If none are available, begin with a conservative (lower) tension setting and gradually increase until the material runs smoothly without wrinkles or breaks.

For thin films, servo-driven tension systems with fine adjustments are recommended to avoid stretching or tearing.

Set the Initial Unwind Tension

A practical starting point is to set the initial unwind tension to approximately 80% of the material's rated tension capacity. This provides a safety margin while keeping the web taut.

For most label materials, the unwind tension should be slightly less than the rewinding tension. A recommended ratio is 1:1.05 to 1:1.1 between unwinding and rewinding tension. This prevents the material from being stretched or deformed during operation.

Implement Taper Tension Control

As the unwind roll diameter decreases, the tension naturally increases if torque remains constant. To compensate, use taper tension control—a strategy that progressively reduces tension as the roll diameter decreases.

With tapered tension control, tension is set to decrease as the coil builds. Experimental data show that the incidence of uneven end faces and wrinkled waste can be reduced by 40% to 60% after implementing precision taper tension control.

A reference setting: start with tension at 100%, then decrease by 5% to 8% for every 10% increase in coil diameter, eventually dropping to 60% to 70% of the initial value.

Use Closed-Loop Tension Control

Manual or open-loop tension control depends heavily on operator experience and struggles to maintain consistent tension during speed changes. Modern slitter rewinders use closed-loop tension control systems that continuously monitor tension through sensors and make real-time adjustments.

A closed-loop system with high-precision sensors can control tension fluctuations within ±0.5%. This level of precision is essential for thin, tension-sensitive materials.

The system works by:

Continuously monitoring material tension through tension sensors
Sending feedback signals when tension exceeds the set threshold
Automatically adjusting unwinding or rewinding speed to correct the tension

Consider Servo-Driven Unwind Systems

Traditional unwind tension systems rely on pneumatic brakes, which can be imprecise and generate particulate emissions from brake pad wear.

A servo motor on the unwind section—an asynchronous A.C. vector motor managed by a digital inverter—ensures highly accurate automatic tension management. Unlike traditional systems, a servo motor operates as an additional drive motor, complementing the draw and rewind motors.

The benefits include:

Precise control directly from the machine's PLC with minimal response time
Energy regeneration that significantly lowers energy waste
Reduced particulate emissions from eliminated brake pad wear
No operator intervention required for tension adjustments

For label converters evaluating slitter rewinder options, understanding the role of servo-driven tension control in waste reduction is a key consideration. Explore slitter rewinder solutions with advanced tension control.

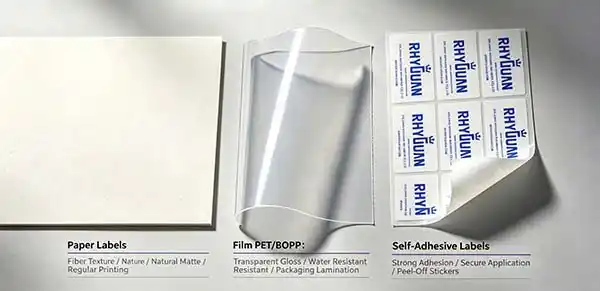

Real-World Application—Optimizing for Different Material Types

The optimal unwind tension settings vary significantly by material. Here is how to approach different material categories:

Paper Labels and Cardstock

More forgiving than films
Start with moderate tension; adjust based on wrinkle formation
Watch for dust generation—excessive tension can cause fiber breakage
Taper tension control is beneficial for large-diameter rolls

Thin Films

Highly tension-sensitive
Use servo-driven tension systems with fine adjustments
Start with lower tension and increase gradually
Closed-loop control is essential for consistency

Self-Adhesive Labelstock

The adhesive layer adds complexity—excessive tension can cause adhesive bleed
Maintain consistent tension to prevent the liner from stretching
Consider the unwind tension-to-rewind tension ratio

Multilayer Laminates

Different layers may respond differently to tension
Use conservative tension settings initially
Monitor for delamination or layer separation

The Financial Impact of Tension Optimization

Material waste is not just an operational problem—it is a financial one. Waste created on a slitter rewinder has the same or greater value than waste created on primary converting equipment.

Consider a converter processing 100,000 meters of material per week at a cost of $2 per meter. A 5% waste rate means $10,000 in wasted material every week—over $500,000 per year. Reducing that waste rate from 5% to 3% through better tension control saves $4,000 per week, or more than $200,000 annually.

Automated tension control helps reduce waste and improve overall production efficiency, leading to cost savings. By minimizing errors and inconsistencies in tension levels, manufacturers can reduce scrap and rework, resulting in lower production costs.

From Tension Optimization to Equipment Evaluation

Reducing material waste on a slitter rewinder starts with understanding and optimizing unwind tension. The principles are straightforward: maintain consistent tension, adjust for changing roll diameters, match tension to material type, and use closed-loop control for precision.

But the equipment itself matters. A slitter rewinder with basic pneumatic brake tension control will always be more difficult to optimize than one with servo-driven, closed-loop tension management. The incremental cost of advanced tension control is often recovered within months through waste reduction alone.

Use this three-question filter when evaluating tension control capabilities:

Does the machine have closed-loop tension control? Open-loop systems cannot maintain consistency during speed changes or diameter variations.
Is the unwind tension servo-driven? Servo motors provide precision that pneumatic brakes cannot match, with the added benefits of energy regeneration and reduced maintenance.
Does the system support taper tension control? The ability to program tension reduction as roll diameter changes is essential for minimizing waste on long runs.

Once you have clarified these technical requirements, comparing specific slitter rewinder configurations becomes the next logical step. For converters processing thin films and labelstock, servo-driven tension systems with closed-loop control offer the best path to waste reduction. For operations running heavier or more forgiving materials, a well-calibrated pneumatic system may suffice—but the gap in precision and waste reduction is widening as material costs continue to rise.
