TOP-330-PLUS-2 Spot Varnish and Die Cutting Machine
Machine for cost-efficient, high quality converting and finishing. Features winding, cold foiling, super varnishing, semi/full flexo printing, semi/full rotary die cutting, IML system, slitting and sheeting. The optimal solution for high productivity.Fully servo driven.
TOP-330-PLUS-2 Spot Varnish and Die Cutting Machine
Avaliable in width: 330mm/420mm
A Digital Label Finishing Machine for cost-efficient, high quality converting and finishing, the optimal solution for high productivity.
Rhyguan flexo and die-cutting machine, fully servo driven, features Winding, Cold Foiling, Super Varnishing, Semi/full Flexo Printing, Semi-rotary Die-cutting, IML system, various Slitting, and Sheeting options.
All Rhyguan TOP-PLUS series is designed for digitally controlling the servo engines as well, which provides synchronization across all servo engines with precision timings and accurate step-and-repeats. The result shows excellent tension control, a very smooth-running machine, and astonishing finishing quality.
The highly efficient design of Rhyguan TOP-330-PLUS-2 is much more flexible, so that can make you optimal productivity when production, and keep the finishing quality at the same time.
TOP-330-PLUS-2
AVAILABLE WIDTH: 330MM/420MM
Max Web Width
330mm
Max Die-cutting speed (full-rotary)
110m/mim
Max Die-cutting Speed (semi-rotary)
60m/min
Max Flexo Printing Speed (full-rotary)
110m/min
Max Flexo Printing Speed (semi-rotary)
60m/min
Accuracy of Flexo Register
±0.15mm
Max Unwinder dia.
700mm
Max Rewinder dia.
700mm
Min Slitting width
16mm
Accuracy of Adhesive Cutting
±0.15mm
Accuracy of IML Cutting
±0.25mm
Total Motor Power
19KW ~ 21KW
Registration
Mark Sensor
Dimension
4250×1260×1800mm
Weight
3800KGS

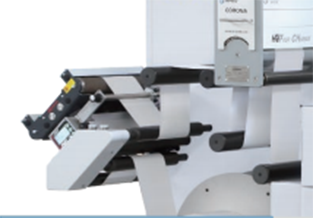

UNWINDER & WEB GUIDING
Servo driven unwind for clock wise and
anti-clock wise unwinding. Automatic
tension control, end-of-roll detection,
webguide, integrated splice table, 76mm
unwind mandrel. Factory upgrade to
unwind rolls with dia = 1000mm and a
reel lift possible.

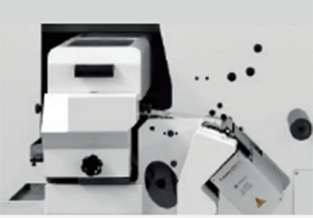

SEMI/FULL ROTARY FLEXO
Independent Servo driven with auto
pre-positioning, and registration.
Standard equipped with Z152 print
cylinder. Optional childrum, standard or
LED curing. Semi-rotary print lengths
50mm—386mm and full rotary print
lengths: 190.5mm-482mm.

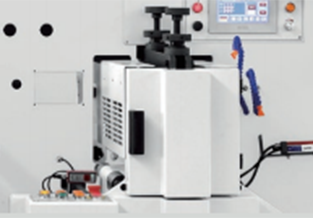

SEMI/ FULL ROTARY DIE CUTTING
Independent servo driven with Z152
die-cut cylinder and anvil and counter
pressure cylinder. Auto pre-positioning,
and registration. Semi-rotary die-cut
lengths: 50mm-386mm and full rotary:
190.5mm-482mm. Standard with
Snowball matrix rewinder.

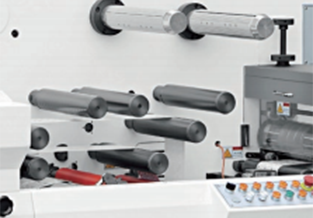

COLD FOIL & SUPER VARNISH
Optional Full or semi-rotary cold foil, in
combination with standard or LED
curing. Can be used for super varnish.
SLITTING OPTIONS
Add shear slitting knifes. Increase
productivity with automatic shear
slitting to control the knifes from the
user-interface. Optional further
automation and razorblades.

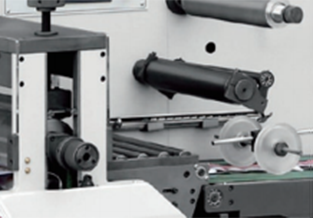

IML SYSTEM
IML die-cutting system designed for
easy installation and removal. Static
eliminator in label output collection
table works with counter and
stepless speed regulation.
REWINDING OPTIONS
Standard single rewind. Upgrade to
dual rewind, or a semi-automatic
turret for optimal productivity.
