KISS-330-PLUS-2 Spot Varnish and Die Cutting Machine
Machine for cost-efficient, high quality converting and finishing. Features unwinding, cold foiling, super varnishing, Semi or full flexo printing, Flat bed die cutting, slitting and sheeting. The optimal solution for high productivity.Fully servo driven
KISS-330-PLUS-2 Spot Varnish and Die Cutting Machine
Avaliable in width: 330mm/420mm
A Digital Label Finishing Machine for cost-efficient, high quality converting and finishing, the optimal solution for high productivity.
Rhyguan flexo and die-cutting machine, fully servo driven, features Winding, Cold Foiling, Super Varnishing, Semi/full Flexo Printing, Semi-rotary Die-cutting, IML system, various Slitting, and Sheeting options.
All Rhyguan KISS-PLUS series also designed for digitally controlling the servo engines as well, which provides synchronization across all servo engines with precision timings and accurate step-and-repeats. The result shows excellent tension control, a very smooth-running machine, and astonishing finishing quality.
The highly efficient design of Rhyguan KISS-330-PLUS-2 is much more flexible, so that can make you optimal productivity when production, and keep the finishing quality at the same time.
KISS-330-PLUS-2
AVAILABLE WIDTH: 330MM/420MM
Max Web Width
330mm
Max Die-cutting Speed (full-rotary)
90m/mim
Max Die-cutting Speed (semi-rotary)
60m/min
Accuracy of Flexo Register
±0.15mm
Max Unwinder dia.
700mm
Max Rewinder dia.
700mm
Max Flat Bed Die Cutting Speed
120m/min
Min Slitting width
16mm
Registration
Mark Sensor
Dimension
4250×1700x1790mm
Weight
4200KGS

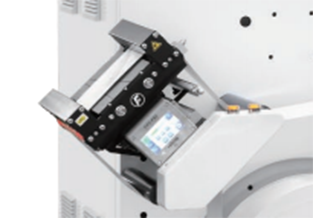

UNWINDER & WEB GUIDING
Servo driven unwind for clock wise and anti-clock wise unwinding. Automatic tension control, end-of-roll detection, webguide, integrated splice table, 76mm unwind mandrel. Factory upgrade to unwind rolls with dia = 1000mm and a reel lift possible.
SEMI/FULL ROTARY FLEXO
Independent Servo driven with auto pre-positioning, and registration. Standard equipped with Z152 print cylinder. Optional childrum, standard or LED curing. Semi-rotary print lengths 50mm—386mm and full rotary print
lengths: 190.5mm-482mm.

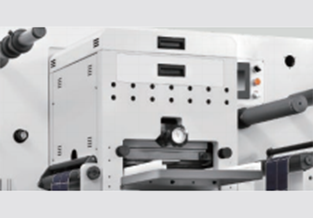

FLATBED DIE-CUTTING
High speed precision flatbed die-cutting unit with maximum speed of 400 stamps/minute. It features a
high-precision step-and-repeat of max 300mm for a high speed throughput of max speed of 120m/min.
The Servo controlled die-cutting pressure, makes the module also suitable for embossing.
COLD FOIL & SUPER VARNISH
Optional Full or semi-rotary cold foil, in combination with standard or LED curing. Can be used for super varnish.
SLITTING OPTIONS
Add shear slitting knifes. Increase productivity with automatic shear slitting to control the knifes from the
user-interface. Optional further automation and razorblades.
CUT-SHEET DELIVERY
High speed rotary cut-sheet module with a conveyor belt enable sheet cutting and collations. This can be upgraded with an automatic stacking unit and combined with single and dual rewind options for optimal flexibility.
REWINDING OPTIONS
Standard single rewind. Upgrade to dual rewind, or a semi-automatic turret for optimal productivity.
